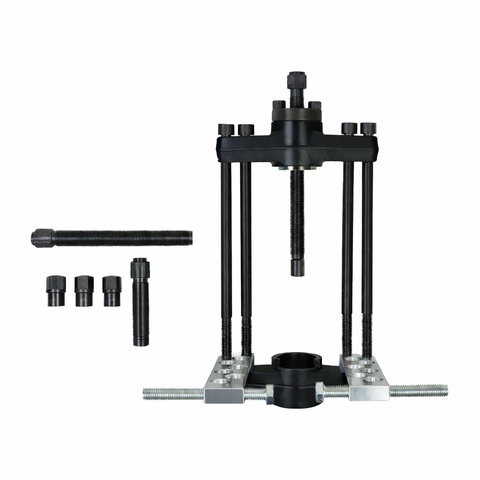

Efficient & Easy King Pin Removal: Tool King Pin Press (part number 90150) revolutionizes king pin maintenance by enabling the removal of king pins within minutes, requiring only a single operator. This tool brings unparalleled efficiency and ease to what was once a labor-intensive task, making it an essential tool for servicing medium and heavy-duty trucks.
Powerful & Optimized Design: Despite its qualified 46,000 lbs of force capability, the King Pin Press maintains a lightweight design at just 30 lbs. Anti-torque arms prevent twisting under extreme force, and optimized diamond-shaped end plates made from high-grade steel reduce the tool's mass without compromising strength, ensuring durability and ease of use.
Comprehensive Service Kit: Our king pin press includes three different forcing screw options, giving you the ability to service everything from 3/4 ton pickups up to Class 8 trucks. A shortened 1 1/4” forcing screw allows you to access king pins from the hardest to reach places and tightest wheel wells – even on busses. We’ve also included our three most popular tie rod end removers: 7/8”, 3/4”, and 20mm.
Wide Compatibility:
Commonly found on class 3-8 trucks and equipment.
For use with Ram 3500/5500
For use with Chevrolet 3500/5500
For use with Ford F-350/550
For use with Isuzu NPR, for use with Kenworth
For use with Peterbilt, for use with Freightliner, for use with Mack, for use with Volvo, etc.
The 90150 works on straight and tapered king pins from 7/8” to 2 5/32”.
Please note that the 90150 is not compatible with FL981 axles where the tie rod is cast to the spindle.
Enhanced Capability:
For specialized applications, the King Pin Press (part number 90150) can be paired with an adapter for Isuzu NPR and GMC/Chevrolet W-series trucks (part number 90151), or the Clearance Plate Adapter for 2 1/2 inch King Pins (part number 90153). These optional adapters extend the tool's utility, providing solutions for a broader range of maintenance challenges.
Item Weight: 42 pounds
Product Dimensions: 20.5 x 6 x 17 inches
Item model number: 90150
